CarBit

A powerful OBD2 engine diagnostics tool compatible with Wi-Fi/Bluetooth ELM327 adapters

This vehicle diagnostics app enables real-time data visualization from your car's electronic systems via ELM327 OBDII adapter. Monitor sensor data graphically, store readings for later analysis, and manage engine fault codes (DTCs) – including viewing and resetting capability.

Customize minimum/maximum thresholds for any sensor/PID to receive instant alerts when values exceed your specified range.

Works seamlessly with both Bluetooth and Wi-Fi versions of ELM327 OBD adapters.

For optimal performance, we recommend adapters version V1.5-V2.1 (note: many users report issues with newer versions).

Important Note:

ELM327 adapters are only compatible with OBD2-equipped vehicles:

US-manufactured cars from 1996 onward

European vehicles since 2001 (petrol) / 2003 (diesel)

Japanese models produced after ~2000

Beyond standard OBDII parameters, specialized diagnostics are available for these

automotive brands (currently supported):

BMW - (DIESEL, E91+AT)

BYD - (MT20U, ABS)

Chery - (MT20U, MT20U2, ActecoME797)

Chrysler/Dodge - (DIESEL, AT)

Citroen - (C4, C5, Sagem2000, CAN/AT6, EDC16C3 , MEV17.4.2)

Daewoo - (SiriusD42)

Fiat - (IAW49F, IAW5SF)

Ford - (ECU, PWM/AT, PWM/ABS, CAN/DIESEL, CAN/AT, CAN/TPMS, CAN/ABS )

Geely - (MT20U, MT20U2, M797)

GM/Chevrolet/Pontiac - (ECU, AT, ABS, SiriusD42)

GreatWall - (MT20U2, EOBD, CAN/4D20)

Honda - (Fit, Accord, CRV/DIESEL, Insight)

Jeep - (ECU, DIESEL, AT, TPMS)

KIA, Hyundai -~15 PIDs for each model(ATF Temperature,

Knock detected and etc)

Land Rover - (RANGE/3.6L, DISC4/3.0L, DISC3/TD6, FL2/TD4)

Lifan - (MT20U, MT20U2, ActecoME797, ME1788, ABS)

Mazda - (ECU, AT, ABS, CAN/TPMS, CAN/SWA)

Mercedes - (W203/CDI, W169/CVT, W168)

Mitsubishi - (CAN/ECU, CAN/CVT, CAN/SS4II, CAN/AWC, MUT/OBD, MUT/GDI)

(Note: Most pre-2000 Mitsubishi models lack OBD2 compatibility

and won't work with ELM327)

Nissan - (CAN/ECU, CAN/CVT, CAN/AWD, CAN/METER, CONSULT2)

Opel - (ECU, AT, ABS, X18XE, Z16XE, Y17DT, CDTI1.6L, CDTI1.3L)

Peugeot - (MEV17.4.2, EDC16C3, ME744, AL4/CAN, AL4/KWP)

Renault - (CAN/ECU, CAN/DIESEL, KWP/DIESEL, Sagem2000, KWP/EMS3132)

Skoda - (CAN UDS TSI/TFSI)

SsangYong - (KWP/ECU, KWP/AT5, D20DT, CAN/D20DTF, CAN/DSI6)

Subaru - (ECU, ECU/DIESEL, SSM2, SSM2/DIESEL, SSM2/AT, KWP/ABS)

Suzuki - (CAN/ECU, KWP/ECU)

Toyota - (CAN/ECU, KWP/ECU, Prius10,Prius20,Prius30/Alpha,Prius30/AC)

VAG - (TDI/2.5L, CAN UDS TSI/TFSI)

Volvo - (D5/P3)

VAZ - (Yanvar 7.2, Itelma VS5.1 R83, Itelma M73, Itelma M74

KWP/CAN, AT/JATCO, AMT/ZF, Vesta/Largus K4M,H4M)

GAZ - (MIKAS10.3/11.3, MIKAS11/E2)

ZAZ - (MIKAS10.3/11.3, MR140)

UAZ - (MIKAS10.3/11.3, MIKAS11/E2, M86CAN)

Our supported models list continues to expand...

Note: Available PIDs vary by vehicle – customize your selection in Settings > PID types for relevant diagnostics.

Certain Mitsubishi models offer advanced control functions (activating cooling fans, fuel pumps, etc.)

For MUT parameter reading and actuator control on CAN-equipped Mitsubishis (Montero/Pajero IV, Outlander 2), create an ISO 9141-2 protocol profile, while maintaining ISO 15765-4 CAN (11bit 500K) or Auto protocol for other CAN parameters.

Warning: Some Mitsubishi CAN models don't support ISO 9141-2 connectivity.

The software provides extensive customization options for creating personalized parameters.

What's New in Version 3.5.9

Last updated on Sep 30, 2024

Includes various performance enhancements and resolved minor issues. Update now to experience improved functionality!

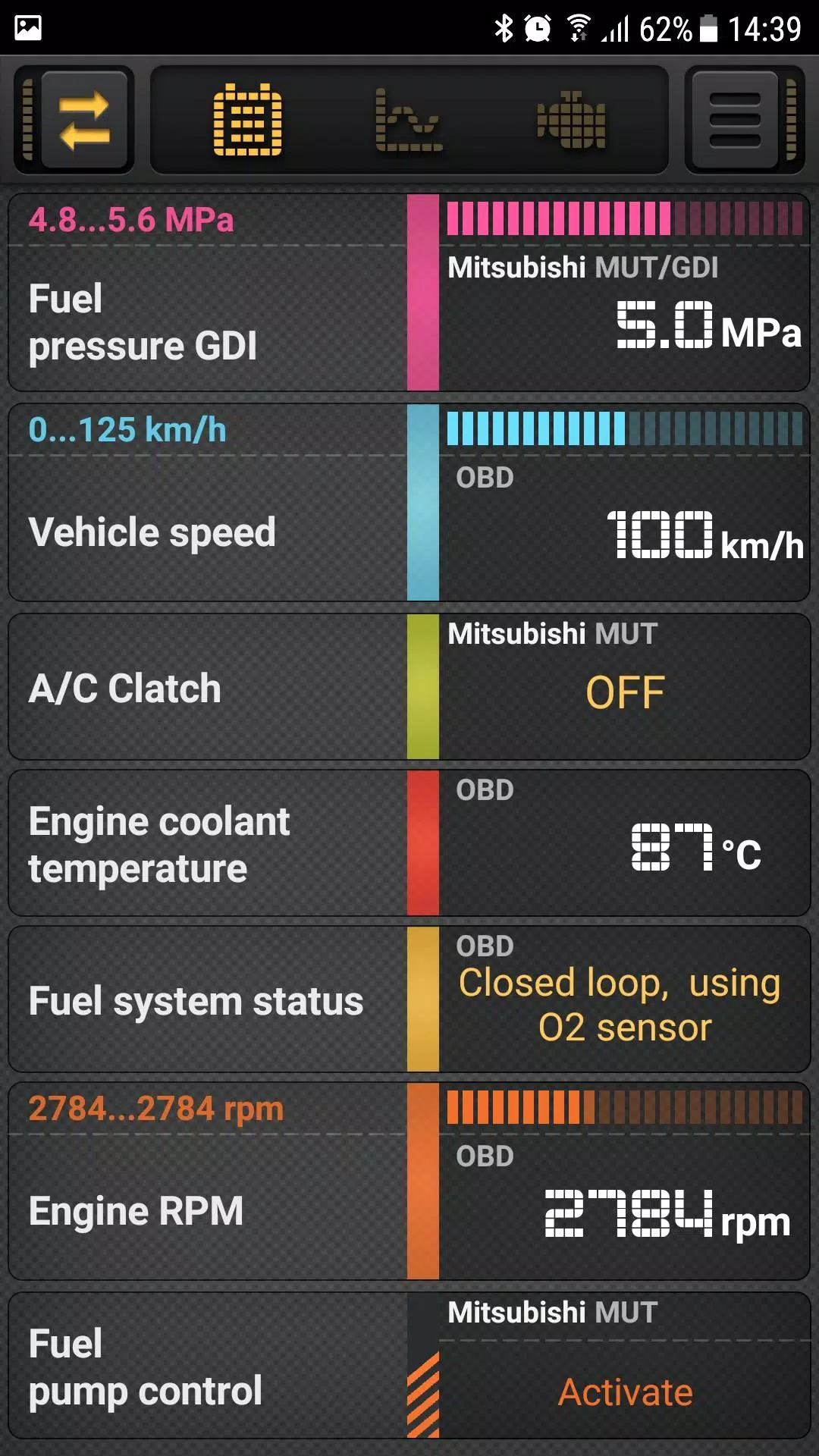

Screenshot
